BP3C backplane r3B3

36.00 €

In stock

SKU: 00079 Category:

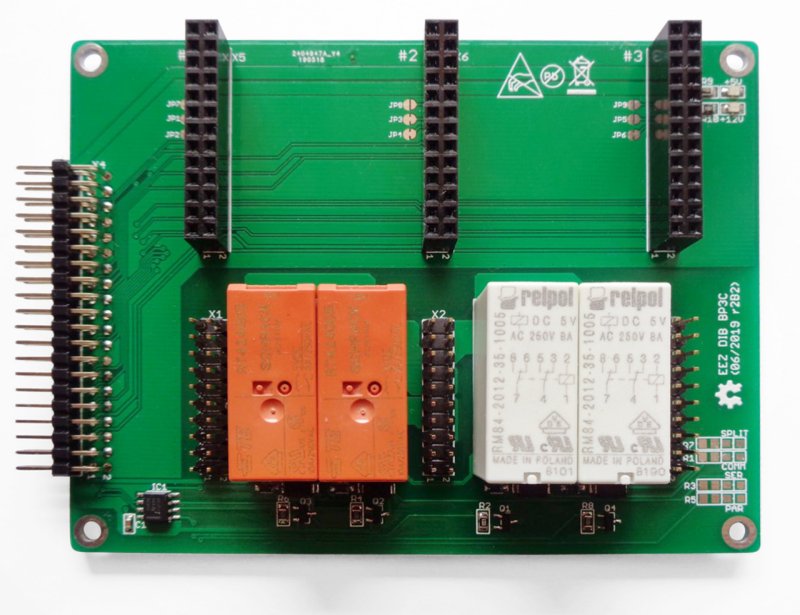

BP3C is backplane for connecting up to three EEZ DIB peripheral modules. When power modules (e.g. DCP405) are plugged into slot #1 and #2, their outputs can be combined under firmware control in one of the following way:

  • Serial coupling to double max. output voltage
  • Parallel coupling to double max. output current
  • Ch#1 Out- and Ch#2 Out+ coupling for split rail output

Additionally, it is possible to couple Out- terminals of all installed power modules (common GND).

The BP3C backplane provides dedicated BOOT output for each peripheral module that comes with on-board MCU and which firmware could be uploaded via SPI or UART. Programmable reset output is also featured that firmware upload procedure can be initiated without power recycling.

Dimensions: 110 x 90 mm, 2-layer PCB
