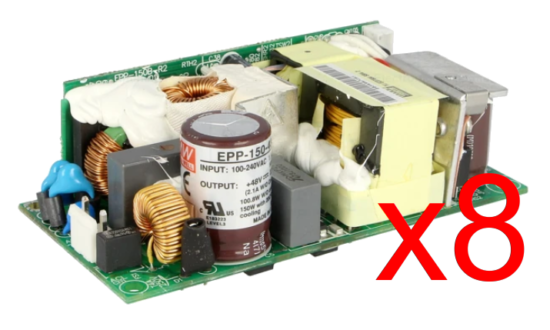

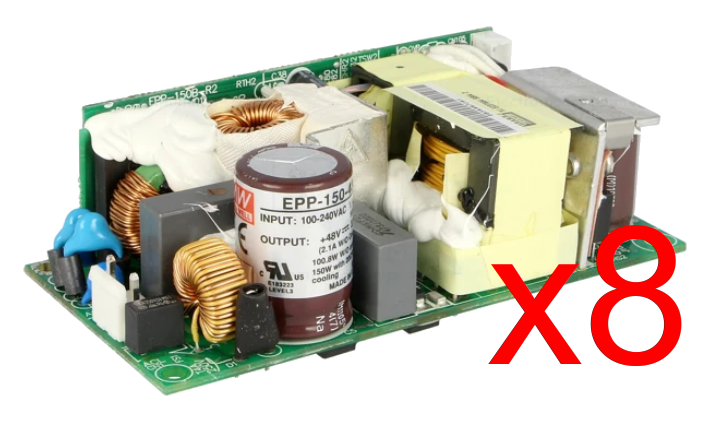

Meanwell EPP-150-48 (set of 8)

Original price was: 222.16 €.Current price is: 190.00 €.

In stock

SKU: P003 Category:

Set of 8 power supply: switched-mode; open; 150W; 127÷370VDC; 90÷264VAC

  • Active PFC
  • Type of power supply switched-mode
  • Kind of power supply open
  • Power 150W
  • Supply voltage 90...264V AC, 127...370V DC
  • Number of outputs 1
  • Operating temperature -30...70°C
  • Mounting for building in
  • Efficiency 92%
  • Protection overheating, overload, short-circuit, voltage growth
  • Body dimensions 101.6x50.8x29mm
  • Electrical connection plug with 3,96mm pitch
  • Weight 200g
  • Maximum current 3.13A
  • Power consumption without load <0.5W
  • Related items BVH-21T-P1.1, SVH-200BK22, VHR-3N, VHR-4N
  • Output voltage range 47.04...50.4V DC
  • Output voltage 48V DC

See also: https://www.tme.eu/hr/en/details/epp-150-48/open-frame-power-supplies/mean-well/

Additional information

Weight 1.6 kg
